Compass Control Panel C-6347

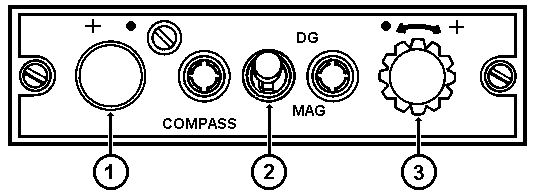

Drawing: Compass Control Panel

Control / Indicator Function
1. Annunciator Moves left (+) or right (•) to indicate nonsynchronization or oscillates between (+) and (•) to indicate synchronization.
2. MAG-DG Switch


Provides magnetically slaved information.


Provides for free directional gyro operation.
3. Synchronizing Control Corrects heading indication when operating in the MAG mode or used as a heading set knob in the DG mode as shown by annunciator null.

The gyro magnetic compass AN/ASN-43 set is a directional sensing system which provides an accurate visual reference indication of magnetic heading (MAG) of the helicopter. The information provided by the system is used for navigation and to control the flight path of the helicopter. The system may also be used as a free directional gyro (DG) in areas where magnetic reference is unreliable. The compass set supplies information to the Horizontal Situation Indicator (HSI) located on the pilot instrument panel and a course indicator (RMI) located on the gunner instrument panel. The compass system functions as determined by the compass controller controller C-6347( ) / ASN-43 located in the pilot right console.
