A-6 INTRUDER (GRUMMAN)

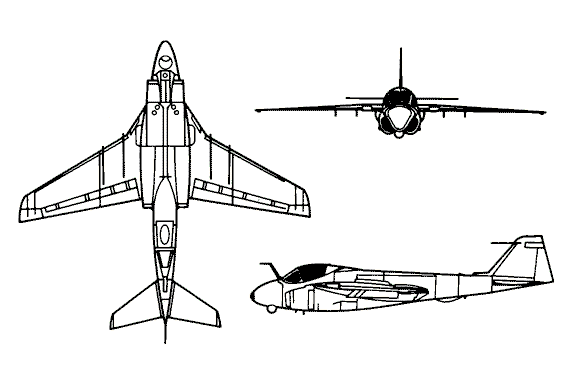

Drawing: A-6 Intruder (Grumman)

GENERAL DATA

Country of Origin. USA.
Similar Aircraft. Hunter.
Crew. Two.
Role. US Marine Corps all-weather attack bomber, tanker.
Armament. Bombs, missiles.
Dimensions. Length: 54 ft, 7 in (16.64 m). Span: 53 ft (16.15 m).

WEFT DESCRIPTION

Wings. Mid-mounted, swept-back, and tapered with blunt tips.
Engine(s). Two turbojets mounted on body midsection. Semicircular air intakes below and forward of the wing roots. Exhausts are in the trailing edges of the wing roots.
Fuselage. Teardrop-shaped with a rounded nose. Body tapers to the rear section. Bubble canopy.
Tail. Unequally tapered tail fin with a square tip and small, stepped fairing in the leading edge. Swept-back, tapered tail flats, high-mounted on the fuselage with blunt tips.

USER COUNTRY

USA
