AV-8B HARRIER II (McDONNELL DOUGLAS, BAe)

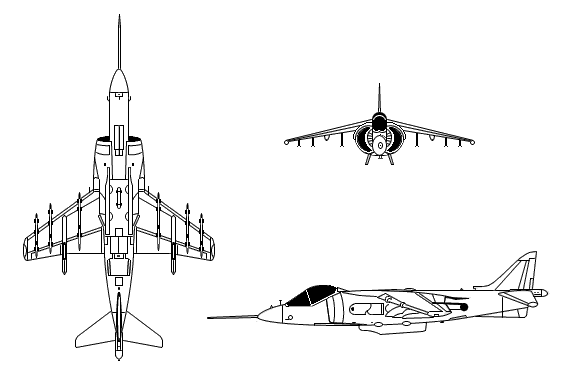

Drawing: AV-8B Harrier II

GENERAL DATA

Countries of Origin. USA, UK.
Similar Aircraft. Yak-38 Forger, Mirage F1, AMX.
Crew. One.
Role. VSTOL fighter, CAS.
Armament. Cannon, missiles, bombs, rockets, gun pods.
Dimensions. Length: 46 ft, 4 in (14.13 m). Span: 30 ft, 4 in (9.25 m).

WEFT DESCRIPTION

Wings. High-mounted, swept-back, and tapered, negative slant and blunt tips.
Engine(s). One vectored thrust turbofan mounted in the body. Large, semicircular air intakes that give the body a rounded appearance from the head-on view.
Fuselage. Thick, rounded, and tapering to a slender tail. Pointed nose and bubble canopy.
Tail. Fin swept-back and tapered with curved tip. Small step in the leading edge. Tail flats high-mounted on fuselage are swept-back with a negative slant and blunt tips. Pointed rear tail cone.

USER COUNTRIES

India, Italy, Spain, UK, USA.
