DEFENDER 500 (McDONNELL DOUGLAS)

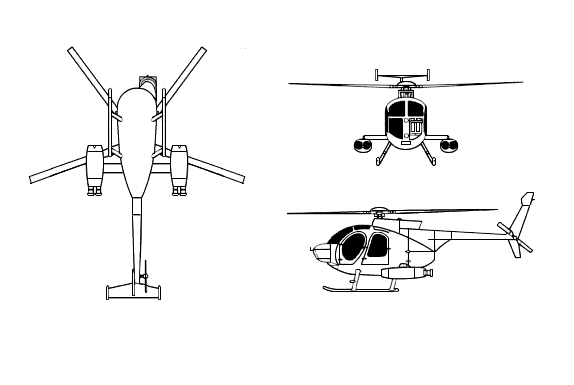

Drawing: HU-500 Defender

GENERAL DATA

Country of Origin. USA.
Similar Aircraft. OH-6 Cayuse, BO 105, Alouette II.
Crew. One.
Role. ASW, scout, antitank, multimission.
Armament. Chain gun, missiles, TOW-capable.
Dimensions. Length: 23 ft (7.02 m). Rotor diameter: 26 ft, 4 in (8.04 m).

WEFT DESCRIPTION

Wings. Either four- or five-blade main rotor (depending on model). Weapons platform on lower rear body.
Engine(s). One mounted inside body. Air intakes on top of cabin. Blackhole exhaust.
Fuselage. Teardrop-shaped. Round, glassed-in cockpit. Landing skids.
Tail. Fin boomerang-shaped, swept-back, and tapered. Flats back-tapered with small fins attached to the tips. Flats high-mounted on the fin forming a “T”. Rotor on lower left of tail boom.

USER COUNTRIES

Argentina, Bahrain, Bolivia, Colombia, Costa Rica, Denmark, Dominican Republic, El Salvador, Honduras, Indonesia, Iraq, Israel, Jordan, Kenya, North Korea, South Korea, Spain, Taiwan, USA.
